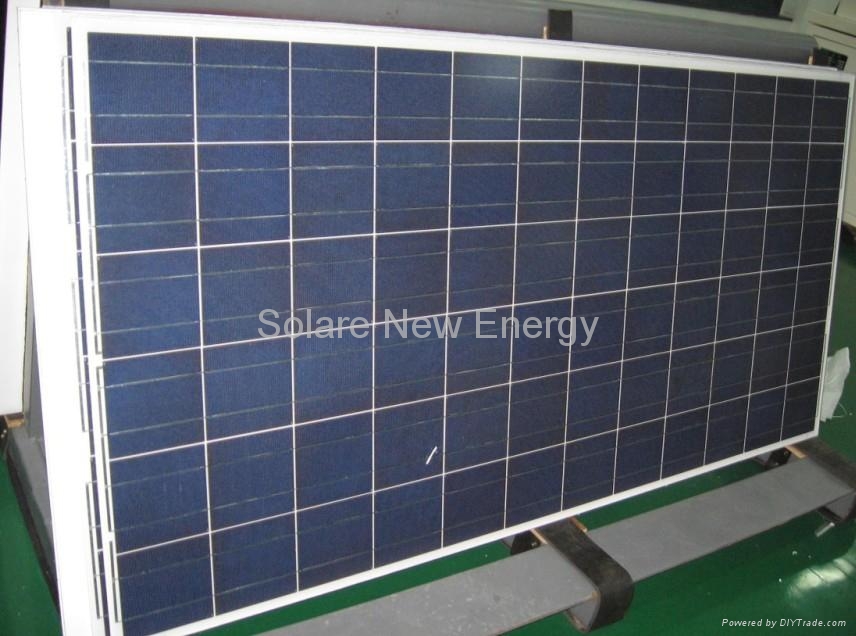

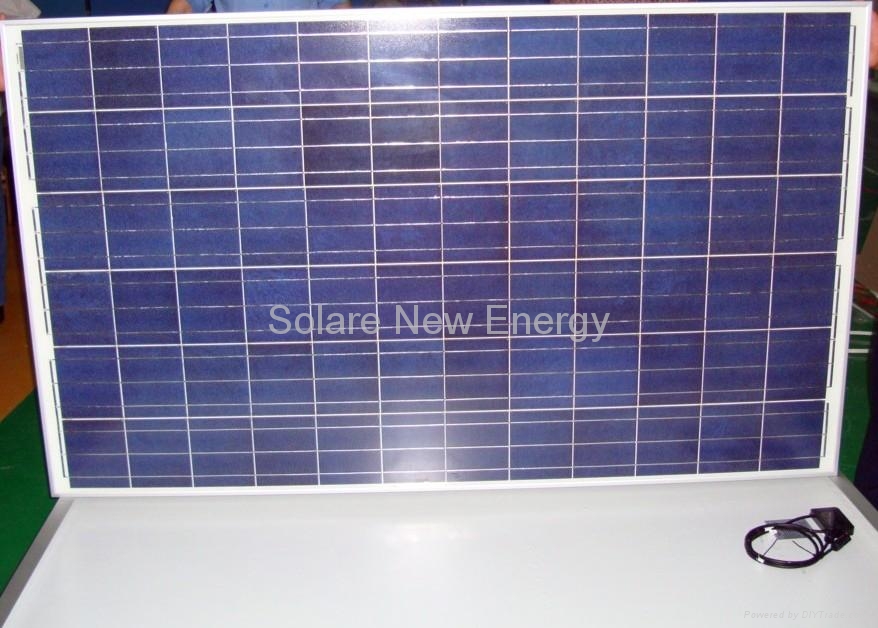

Solare new enegry Poly solar PV module 285W 36V offer industry leading high performance and are designed specifically to meet our client demands for residential, commercial and industrial use from small installations to multi-Megawatt power plants.
Quality Characteristics are as below:
a)Poly solar PV module 285W 36V With STP, JA solar etc famous brand High-efficient solar cells ensure high performance of solar module and create more power under same condition.
b) Average power of PV modules is within positive tolerance.
c) 3.2mm high-transparent low-iron toughened glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.
d) Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind pressure and snow load.
e) Bypass diodes to avoid hot-spot effect.
f) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame trough and freeze or even bend the frame in cold season.
g) Produced under systemic quality control covering all processes and factors.
|
Module Specification
|
SM285(36)P1950×990
|
|
Module Type
|
Poly
|
|
Peak power (Pmax)
|
285W
|
|
Open circuit voltage (Voc)
|
43.66V
|
|
Short circuit current (Isc)
|
8.67A
|
|
Max. power voltage (Vm)
|
35.5V
|
|
Max. power current (Im)
|
8.03A
|
|
Maximum System Voltage
|
1000VDC
|
|
Operating Temperature( )
|
-40 to 85
|
|
Module size (mm)
|
1950×990×50mm
|
|
All technical date at standard test condition:
Am=1.5 E=1000W/m2 Tc=25
|
